CMSC 498B: Developing User Interfaces - Spring 2005

Final Review

Home

Review for Final

Final exam is cumulative.

Major Topics (* most important)

GUI elements and programming model
- Forms, controls, properties
- Event-driven programming
* Layout
- Manual layout
- Docks + Anchors
- Custom layout event handler - positions children of a node in response to a layout event which is usually fired when the parent or any children's bounds change

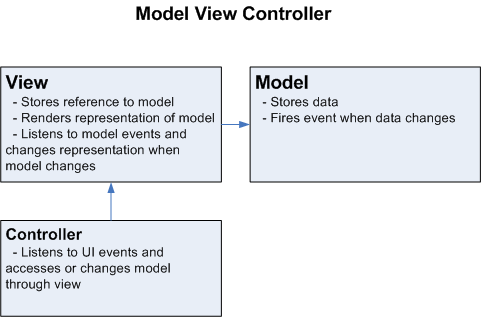

* Model-View-Controller architecture
- Goal: Separate data from display and interaction
- Result: Core application manipulates data and ignores UI
  UI Designer can change UI independent of computation
  Multiple views can be synced with model
- Use MVC to create a custom control. Should have:
  - Model to specify data, ideally defined by a generic interface
    Model should fire event when data is changed
  - View that renders model data
    Listens to event and changes view appropriately
    Includes properties to configure view
  - Integated Controller that lets user interact through view to access or modify model
- See TreeControl (Proj #5) solution for example (but doesn't use model events)
Data Binding
- A specific application of MVC to a control (i.e., ListBox.DataSource)
Undo / Redo (Command design pattern)
- General mechanism to encapsulate an action
- See Adobe Photoshop history
Cut, Copy, Paste
- Mechanism to share data among processes
- Can support general as well as application-specific data types
Internationalization
- Pull out culture-specific UI elements into resource bundles (Globalization)
- Non-developer can create culture-specific bundles (Localization)
2D Graphics
- Graphical data types (text, images, paths)
- Rendering elements (pens, brushes, bitmaps)
- Coordinate systems
- Transformations
- Color models
- Clipping
- Region management (efficiency mechanism to only re-render what changes)

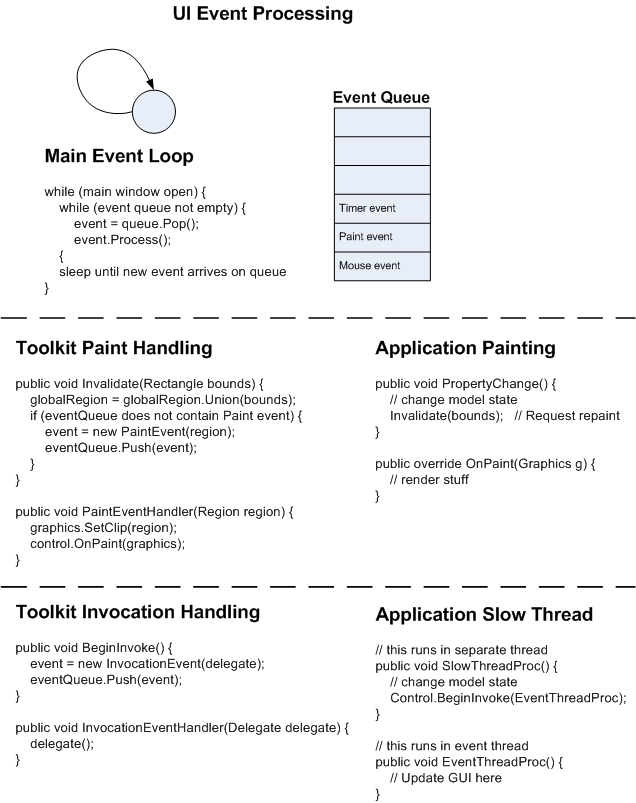

* Event loop, event queue, threaded programming

Technologies
- C#, Visual Studio.NET
- Piccolo.NET
- Web Services
- Server applications (i.e., JSP, Servlets)
