PhotoCropr is a .NET application that can be used to generate
and explore croppings of images using either the "Rule of Thirds" or the
"Golden Mean" to place a
center-of-interest (currently determined by the user) in one of
several specific positions in the new image.
The application can either display
four previews of possible croppings, created using either
the "Rule of Thirds" or "Golden Mean" crosshairs to position the
center-of-interest,
or
those four options augmented with two central croppings;
one where the center-of-interest appears centered horizontally, but
on the upper rule-of-thirds line, and one where the center-of-interest
has been fully centered in the frame.
In both display variants, the user is able
to adjust the zoom level for all croppings while keeping the
center-of-interest in the same relative position in the frame
of each.
For some more information about composition rules such as the
"Rule of Thirds" and "Golden Mean"
you might want to visit the
Composition Rules Visualizer page.
This is an application created during work
on an image modification project. It is posted for free for
entertainment purposes.
The first step is to load an original hi-resolution image, and then
click on a point-of-interest (such as the middle of the image's
center-of-interest).

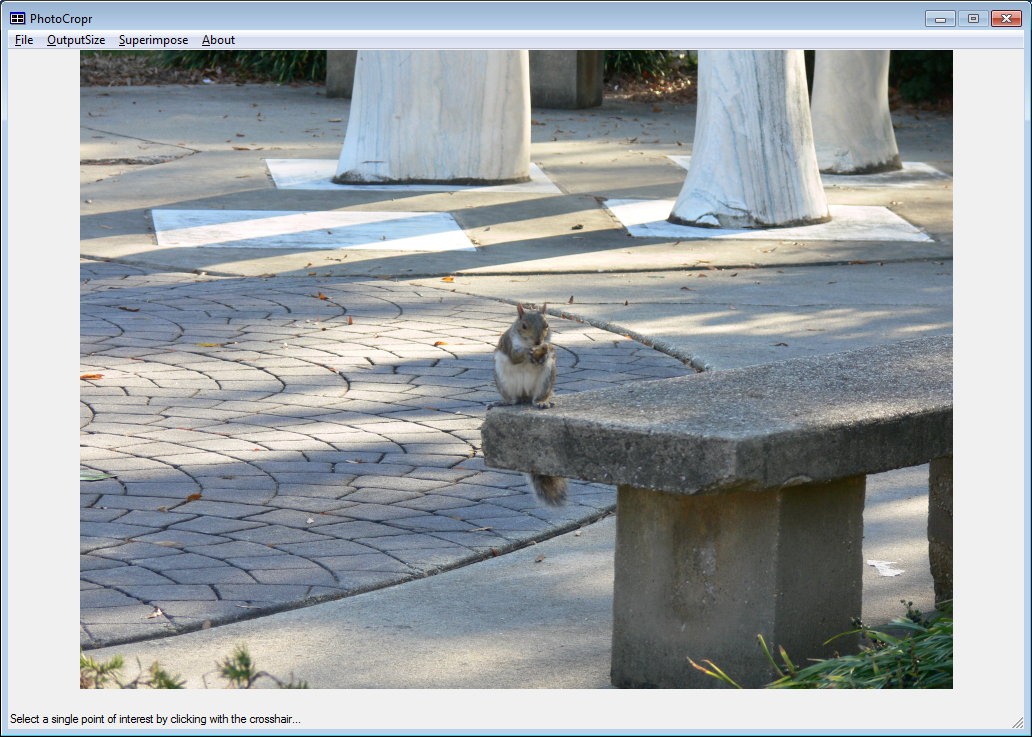

Figure 1: An image that we want to crop based on the position
of a particular point-of-interest.

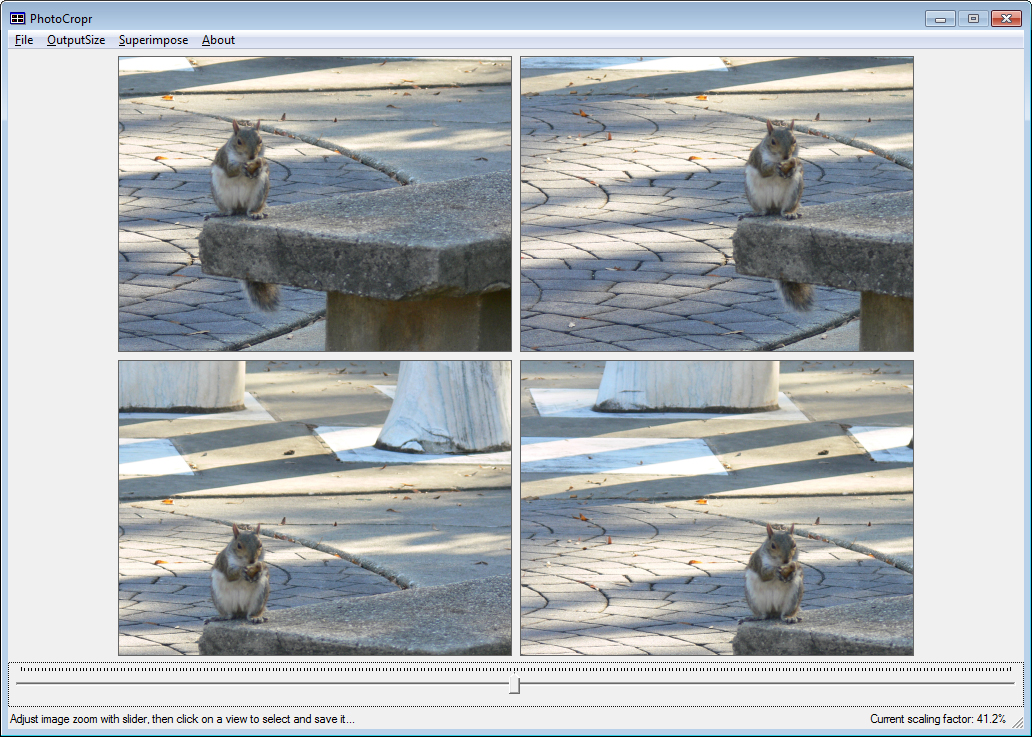

The application will then present previews of possible croppings,
one for each of the four possible placements of the point of interest
on a "Rule of Thirds" or "Golden Mean" intersection point, and if selected,
one for each of the two center-based placements. Examples on this page
use the "Rule of Thirds" option, but equally apply to the "Golden Mean"
option.
Figure 2: The four preliminary "rule of thirds" croppings.
Once the point-of-interest has been selected and the four preliminary
croppings presented, you can move the slider below the images to zoom
in or out. This will maintain the position of the point-of-interest
while changing the framing of the image.

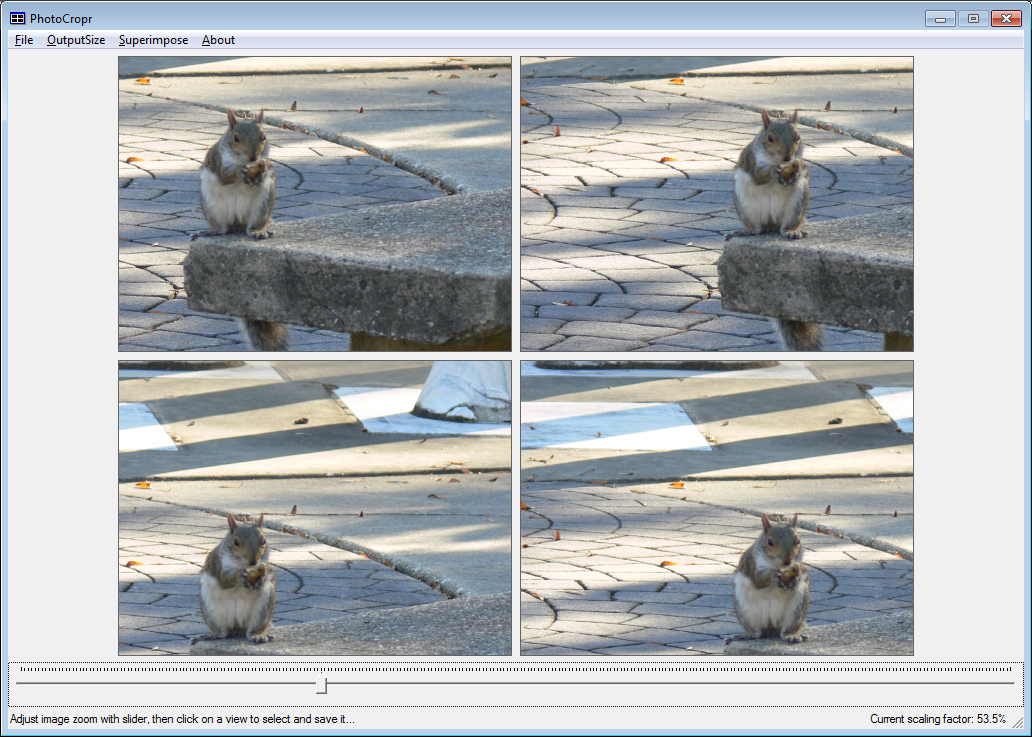

Figure 3: View of the cropping options after zooming in some more.

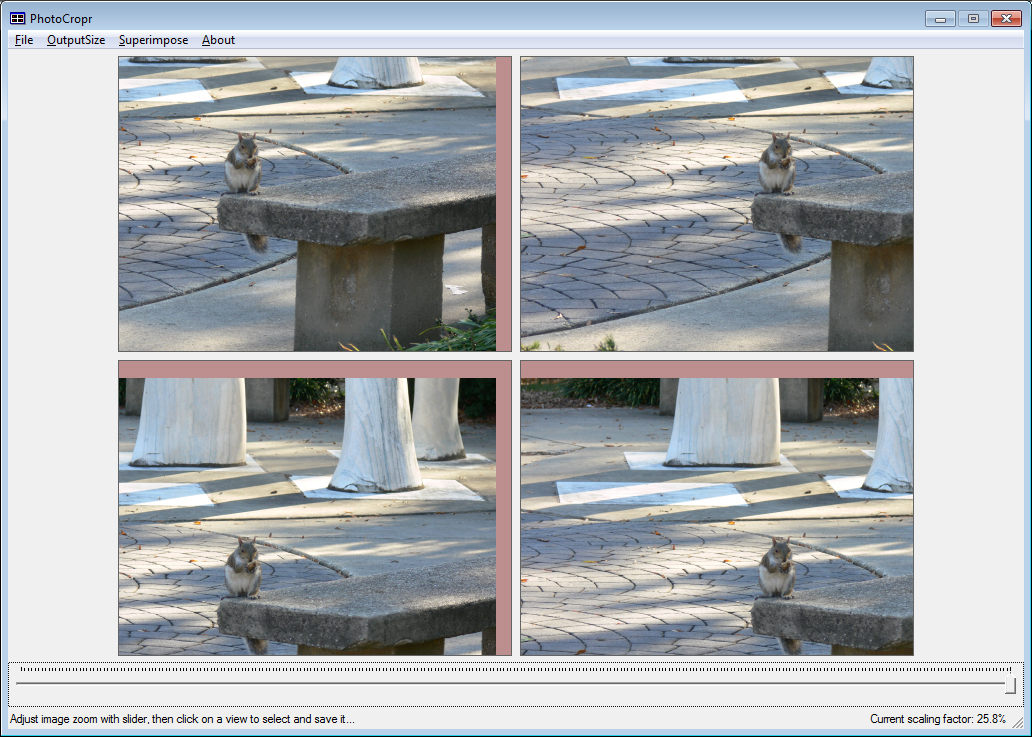

Figure 4: View of the cropping options after zooming out.
You might notice that in three of the four previews in Figure 4, there is
not enough original image available to
fill the frame of the cropping so you see some rose-colored edging. If
one of these is selected, the "out-of-bounds" area will appear
black in the output file. The slider is configured based on the size or
the original image, the size of the output image, and the point you selected
such that it will not allow you to zoom out to a point where all of the
cropping options have "out-of-bounds" areas.
To save one of the cropped versions, just click on the preview of the one
that you like.
A save dialog will come up pre-populated with the original filename appended
with a quadrant code (NW, NE, SW, SE).
Several output sizes are available in
4:3, 3:4,
3:2, and 2:3 aspect ratios.
There are also three output sizes available that are relative to the source
image's original size and aspect ratio.
The default output size is 800x600 or 600x800 (depending on
the orientation of the original image) but the orientation as well as the
output size can be altered (within the provided options) under the
OutputSize menu after you open an original image. You
can also change the default output size through the Settings dialog
under the File menu.
The Settings dialog also allows you to change the color used for
the out-of-bounds indicator as well as whether you want to preserve EXIF
data from the original image when saving the cropped version.

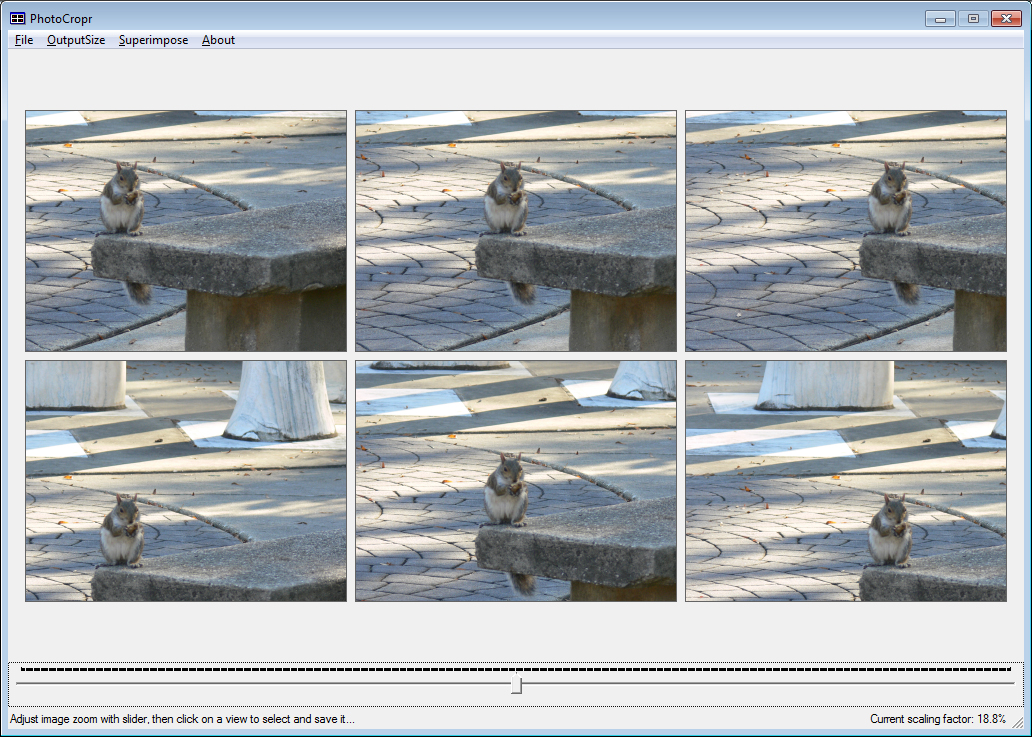

Figure 5:
The four "Rule of Thirds" croppings augmented with two more cropping previews.
The point-of-interest centered horizontally but aligned on the upper
rule-of-thirds line, and the point-of-interest dead-center in the frame.
Regardless of composition rule selected,
while adjusting the zoom level for the previews, the user is able to view
those previews with the composition rules (ie: "Rule of Thirds" or
"Golden Mean" or "Golden Spiral") lines superimposed upon them
by going to the Superimpose menu, and checking Show Lines.
If that option is checked, whenever the mouse is not positioned over the
zoom adjustment trackbar, the lines will appear on top
of the previews. The color and width of those lines can be adjusted under
the Superimpose menu as well.

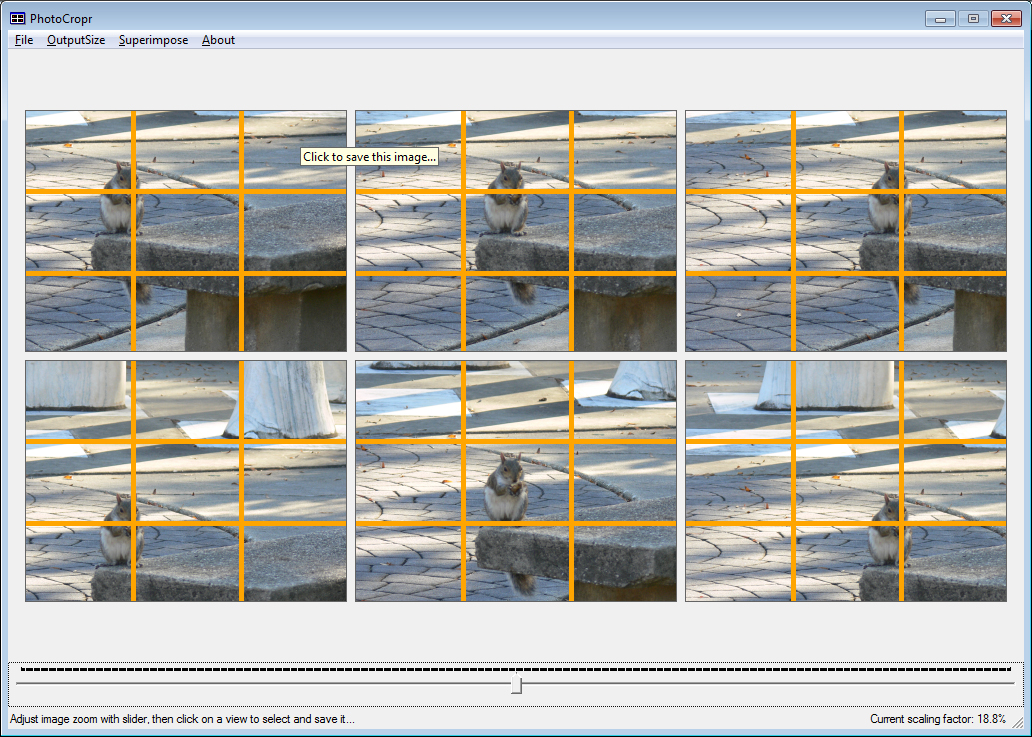

Figure 6:
The cropping previews with the "Rule of Thirds" lines superimposed.
While less commonly used than the "Rule of Thirds" or "Golden Mean" are,
the current version also supports positioning the point-of-interest
on the origin of the "Golden Spiral". Below is an image of a nautilus
shell found at a publically accessible web gallery
(http://community.webshots.com/photo/39638452/39646225iPkxha)
and viewed inside PhtooCropr. The zoom level has been
adjusted to bring the shell into alignment with the "Golden Spiral".

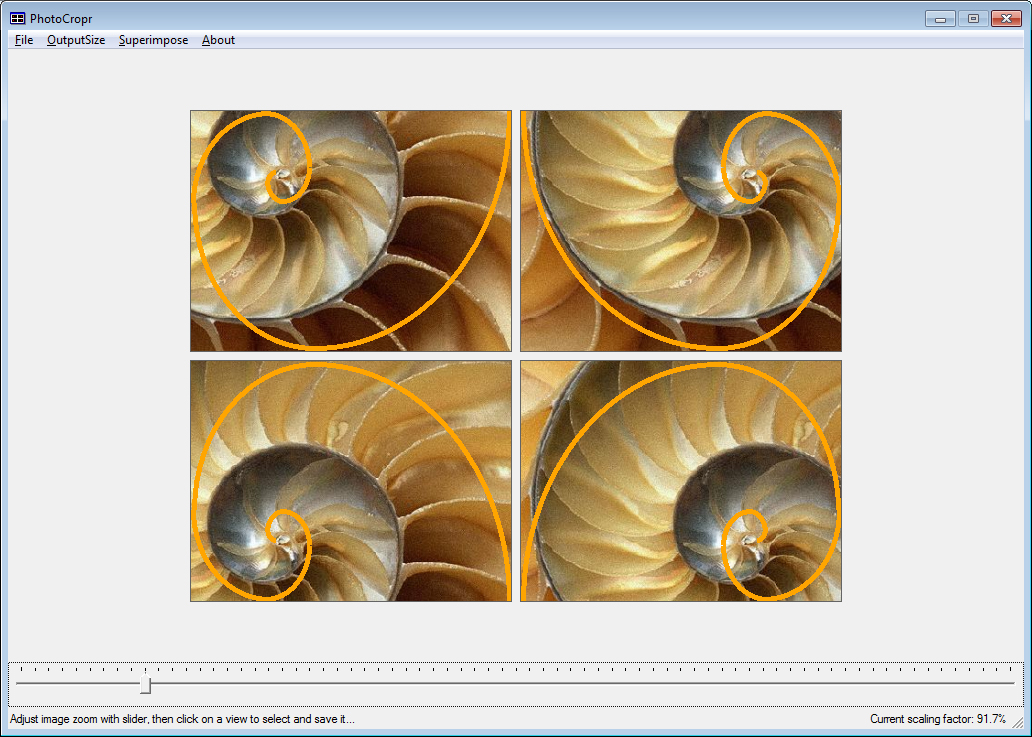

Figure 7:
A nautilus shell cropped using the "Golden Spiral".
Figure 8: Original image.
|
Figure 9: Cropped image.
|
Of course, it all comes down to the question of
"Which do you find more visually appealing?"
This is a question you need to
answer as you explore different cropping options with this tool.
The idea of having multiple previews of the croppings, all being controlled
by the same zoom slider, was inspired by
SideViews,
developed by
Elizabeth Mynatt and Michael Terry at
Georgia Tech.
A future version of this application might add an option to display an
enlarged preview of
any displayed cropping by mousing-over that preview (inspired by the
PhotoMesa Image Browser,
developed by Ben Bederson, Bongwon Suh, and Hyunmo Kang
at The HCIL@UMD).
This is a preliminary stage in a project to automatically generate
croppings without the user being required to manually identify the
point-of-interest in an image.
If you are interested, you can read a
draft of a technical report describing
the project's goals. Some of the research discussed in this draft
will be performed in the future.
You can download either the
Version 0.77
executable
or
a ZIP file containing the executable.
.
This software is provided for free for entertainment purposes only.
If you are interested in using this software for commercial purposes
contact the author, Evan Golub, at
egolub@acm.org.
