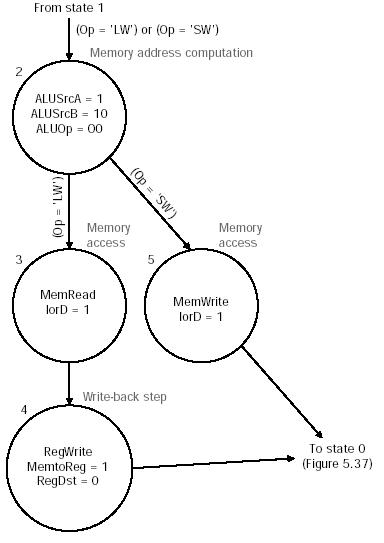

Multi-cycle control: memory-reference FSM

From state 1 (decode/register fetch)

State 2: Memory address calculation

LW: to state 3

SW: to state 5

State 3: Memory read

To state 4

State 5: Memory write

To state 0

State 4: Write register

To state 0 (fetch)

Fig. 5.38
