Multi-cycle control: FSM

As in single-cycle case, need to generate control signals for MUXes, etc.

Can no longer be combinational, however.  Why?

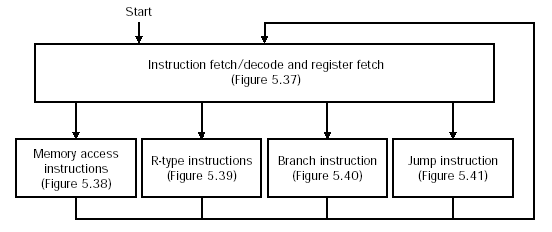

Use FSM to represent states, inputs, outputs

Fig. 5.36
