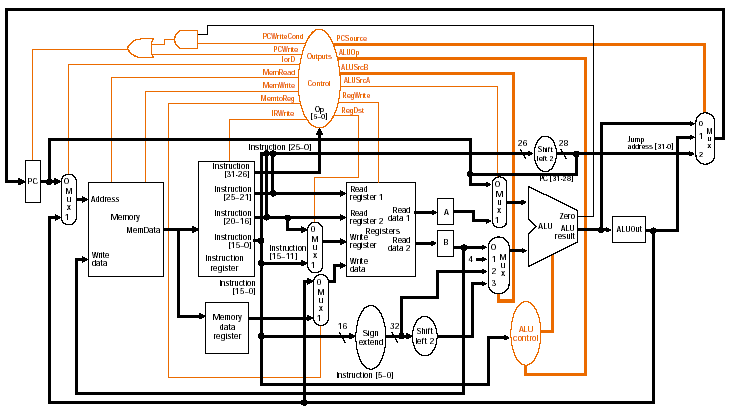

Multi-cycle datapath: instruction fetch

Fig. 5.33

1. Fetch instruction from memory and compute address of next sequential instruction

Operation:

IR = Memory[PC];

PC = PC + 4;

Control signals needed

MemRead, IRWrite asserted

IorD set to 0 to select PC as address source

Increment PC by 4:

ALUSrcA = 0: PC to ALU

ALUSrcB = 01: 4 to ALU

ALUOp = 00: add

Store PC back

PCSource = 00: ALU result

PCWrite = 1

The memory access and PC increment can occur in parallel.  Why?

Because the PC value doesn't change until the next clock cycle!

Where else is the incremented PC value stored?

ALUOut

Does this have any other effect? No
