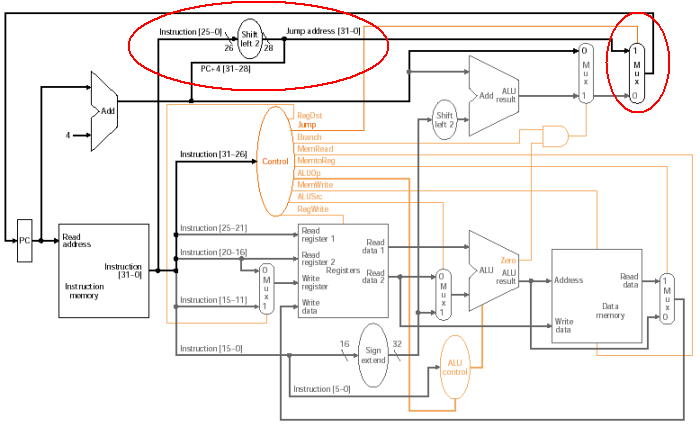

Datapath: jump

Shift instruction bits 25-0 left 2 bits to create 28 bit value

Fig. 5.29

Combine with bits 31-28 of (PC + 4) to produce 32-bit jump address

Additional MUX uses Jump control to select instruction address

0: Incremented PC or branch target

1: Jump address
