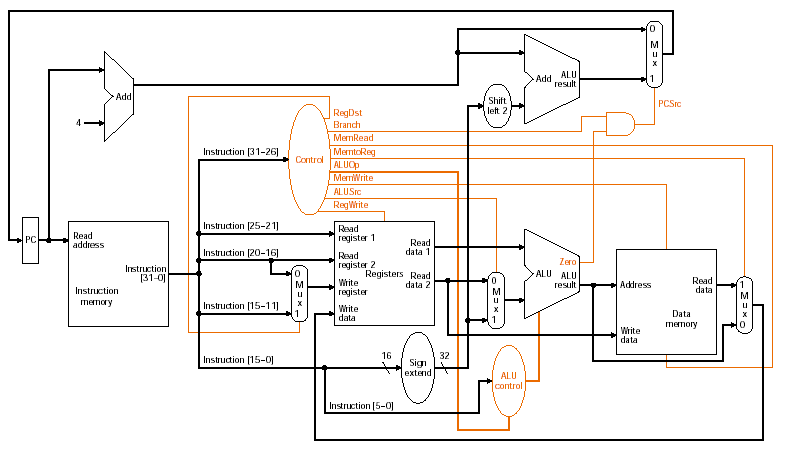

Datapath with control

How to set control bits?

Fig. 5.19

Could use Boolean equations or truth tables, but depends only on opcodes

Fig. 5.20

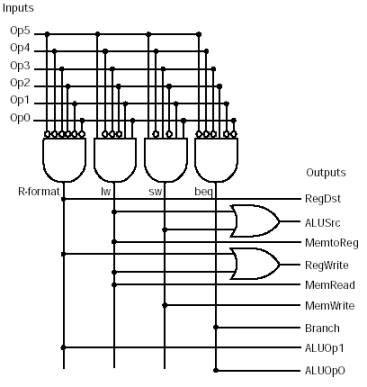

Implementation in gates, using input from opcode bits, in Fig. C.5:

Opcode

bits

Control signals
