Combining datapaths: branch

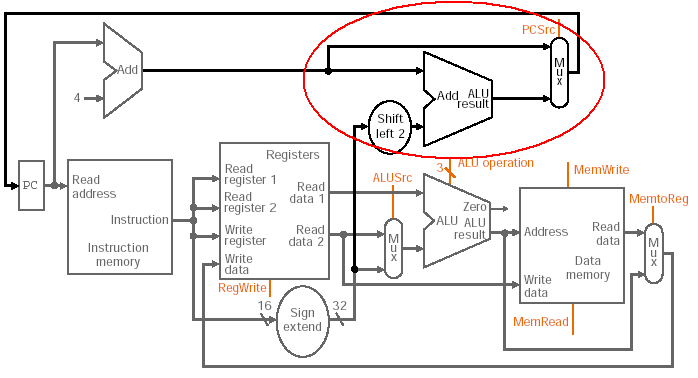

Add branch:

Fig. 5.13

Additional MUX

uses PCSrc input to select:

incremented PC or (PC + immediate) from second adder

output goes to update PC

Need to keep separate adder to compute branch address
