Instruction fetch

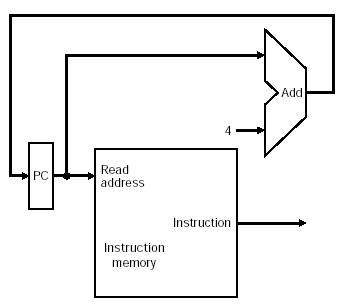

Fig. 5.5

Instruction fetch

PC gives address to instruction memory

Memory outputs instruction contents

Increment PC

PC value is first operand input to adder

Constant 4 is second operand input to adder

PC + 4 is stored back in PC

Repeat once each clock cycle
