Instruction fetch

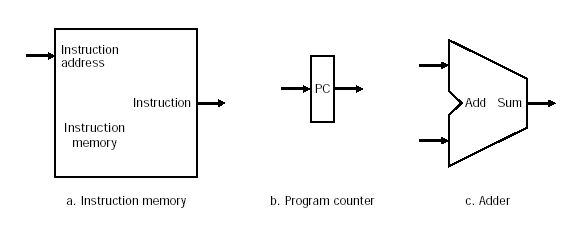

Fig. 5.4

Instruction fetch: used by all instructions

Memory

Input: instruction address

Output: instruction

how to build: defer until later

Program counter

Register containing address of current instruction ("hidden")

Adder: ALU with only one operation

Combinational circuit

Input: 2 operands

Output: sum
