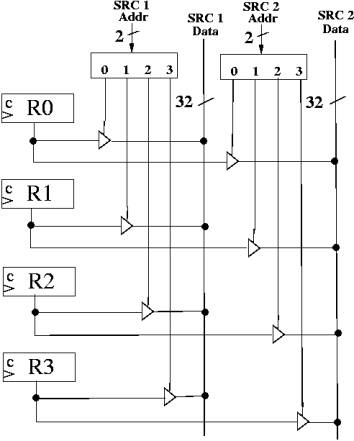

Register file: implementing

What device to use?

2 bits of input (register number)

4 bits of output, of which exactly one should have the value 1

(tri-state buffer control)

2-4 decoder

2 bits of input (UB)

1 bit of output

What about destination register?
