Register file: implementing

Register file uses combinational logic with a set of registers

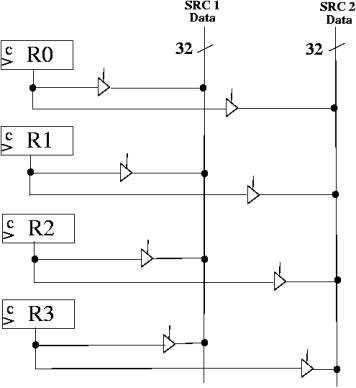

We attach the outputs of each register to two buses, using tri-state buffers for each.

How to select the right registers?

SRC 1 addr and SRC 2 addr

How many bits for 4 registers? ceil( lg( 4 ) ) = 2 bits
