Register file: writing |
|
|
|
|
|
|
|
Reading from a register
file is only part of the story |
|
|
Writing to a register
file |
|
|
|
|
Control input called
write enable (WE) |
|
|
|
|
When WE = 1, then we want
to write to the register file |
|
|
|
|
Once we add R[2] to
R[3], we need to save the result to destination register R[1] |
|
|
|
|
Require 5 bits to
indicate the destination register (DST addr) |
|
|
|
|
|
Can come from IR: bits B15-11 are used for
destination register (R-type) |
|
|
|
|
Need 32 bits of data to
write to the register (DST data) |
|
|
|
|
|
Data comes from the
output of the ALU |
|
|
|
|

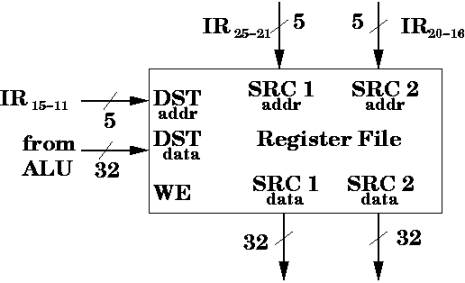

How the register file
looks now: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Summary: |
|
|
|
|
Inputs |
|
|
|
|
|
SRC 1 Addr: index of the
first source register (5 bits) |
|
|
|
|
|
SRC 2 Addr: index of the
second source register (5 bits) |
|
|
|
|
|
DST Addr: index of the
destination register (5 bits) |
|
|
|
|
|
DST Data: data to be
written to the destination register (32 bits) |
|
|
|
|
|
WE: DST Data is written
to the register at index DST Addr only when WE = 1. |
|
|
|
Outputs |
|
|
|
|
|
SRC 1 Data: contents of
the first source register, as specified by SRC 1 Addr. |
|
|
|
|
SRC 2 Data:
contents of the second source register, |
|
|
|
|
|
|
as specified by SRC 2
Addr. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
