Finite state machines: implementing

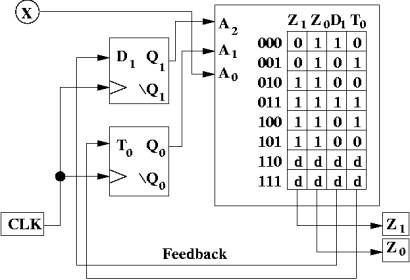

Notes:

Label the address bits: A2A1A0

Connect inputs to address bits in order: q1q0x

Label ROM addresses: 000 to 111

Label ROM data columns: Z1Z0D1T0

Don't include next state in ROM.  Where does it go?

D1 and T0 feed back to flip-flop inputs

Leave the "don't cares" as they are

Circle input x to show it comes from an external source

Square the outputs z to show they are external
