Finite state machines: counter

Use FSM to implement a synchronous counter

2-bit (mod 4) counter

starts at 00

counts up to 11

resets to 00 after 11

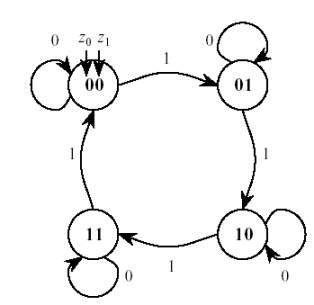

Finite state machine

state (q): 2 bits, initially 00

output (z): same as state

input

x = 0: same state

x = 1: increment

Usage

Keeping track of number of bits sent

Program counter (PC)

Increments each clock cycle to point to next instruction
