Sequential circuits: clock

Clock edge

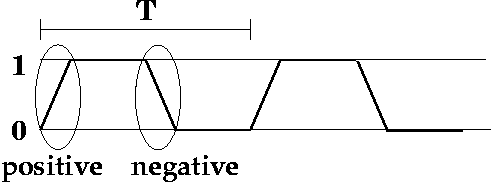

In each cycle, the clock transitions:

0 to 1: positive edge

1 to 0: negative edge

This does not happen instantaneously

rise time: positive edge

fall time: negative edge

Timed devices can only change state on an edge

positive triggered

negative triggered

Otherwise, they hold their value
