Overflow: UB

Unsigned binary:

Add 2 non-negative numbers: result is greater than or equal to each number

x + y >= x

x + y >= y

Overflow occurs when result is larger than maximum number (2k - 1 for k bits)

Can detect overflow just by checking if carry out from most significant bit is 1

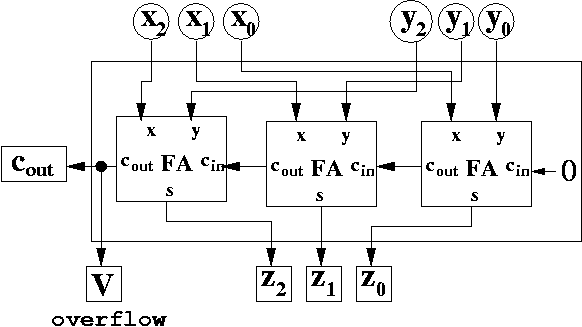

Ripple-carry circuit with overflow detection:

"V" is used to denote overflow bit ("O" is too close to "0")
