Chapter 4: Ingres domain function / mediator example.

• 4.1 -- Introduction: This chapter serves to explain the Hermes language syntax and function while examining some features implemented in, and tracing a sample query execution for, the Ingres relational database domain.

• 4.1.1 -- The Hermes language started as a simple subset of Prolog. To this we added function calls which allow access to external software packages and data.

• 4.1.2 -- Hermes annotates mediator predicates with terms ranging over truth values to indicate relative expression confidence or certainty. Hermes represents these truth values as real numbers ranging typically between 0 (no certainty) and 1 (total certainty).

• 4.1.3 -- Hermes uses a standard data format for exchanging information between its search engine(s) and defined domains. This standard data exchange format provides a rich set of data structures which include constants, records, arrays and sets. The data types are both very flexible and precise. Moreover, Hermes language constructs provide easy access to data structure elements; Unstructured or binary data can be exchanged through files.

• 4.1.4 -- All Hermes mediator return types are explicitly declared; As such the engine checks return types during parsing, as the system loads, rather than when a given query executes.

• 4.1.5 -- A Hermes domain declaration, listed in a catalog file, defines an interface used by Hermes mediators to access 3^rd party software packages, or data sources, via supported interface calls supplied by the software, or data, vendor.

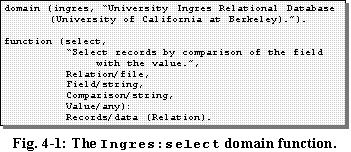

• 4.2 -- Domain implementation, the Ingres example: Relational database systems, such as Ingres or Oracle, typically provide a function call interface for database operations which include field projection and record selection. Fig. 4-1, an excerpt of the Ingres domain declaration, shows Hermes exploiting the ingres:select function. Domain declarations specify both the function arguments and return types as variable-name/data-type pairs. Using the ingres:select function, Hermes mediators can select records from any ingres database by specifying the database Relation file path, the target Field name, the Comparison operator, and a Value with which to compare the target field. Note that the comparison value may be of any type; However it must match the target field type (This condition gets checked by the domain interface). The function output type, in this case a relational database table, is computed by the built-in data function, which takes the file and field name inputs and assigns the output from the matching mediator data declaration. (Additional forms of the data declaration are described in section 7.2.3.)

    Implementing similar high-level function interfaces for other relational database systems, such as Oracle, Dbase, and Paradox, provides Hermes uniform database functionality which spans a variety of systems and platforms. While relational databases are probably the most common domain class, the general domain function framework applies to many other types of software as well. In this respect, Hermes can form the glue by which to cement greatly varied data sources and types into an easily referenced, homogeneous knowledge pool.

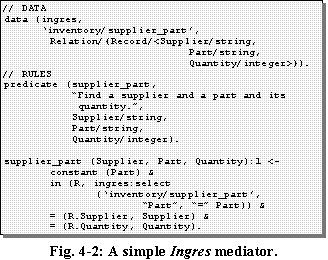

• 4.3 -- Mediator implementation: Once integrated, domain functions can be used in mediator text files to define queries into domain data. Mediator files typically consist of data sources, rules employing domain functions, and facts. The mediator listed in Fig. 4-2 defines a rule, supplier_part, which answers the query "Who supplies a given part ?" using information stored in the Ingres inventory/supplier_part relational database table.

    Hermes provides several mediator declarations for declaring data types and locations. Within the mediator, the predicate declaration defines a data query into one or more domains. Predicate arguments include the predicate name, description (both strings), and its term names and types. The data declaration defines the target database relation record structure. Observing Hermes type notation in the example mediator data declaration (brackets '[]' surround arrays, angle brackets '<>' surround record structures, and braces '{}' surround data sets), we note that the 'parts' Ingres relation table consists of a set of records. Each record, contains a suppler field (of string type), a part name field (also a string), and an integer supply quantity field.

    Of key importance to the Hermes language is that the domain catalog data function and the mediator data declaration work together, but within different parts of the search engine(s) -- This allows integration separation for new domains (software) and associated data. That is to say that the user need only integrate software package X once, during the initial X domain integration phase. After domain X exists within Hermes, then additional X domain data files can be integrated simply by writing the appropriate mediator data declarations which describe the underlying data structures (and is used ultimately to define the domain data function output type) of the new X files.

• 4.4 -- Mediator query execution -- the "Proof": The simple rule in Fig. 4-2 states that a supplier provides a part if the Ingres 'inventory/supplier_part' relation shows that it does. (The symbols beginning with an upper-case letter (Supplier, Part and R) are variables.). In order to answer, or prove, a query, the Hermes engine effectively compiles the applicable rules into a stack of operations which include the following:

• Resolution between predicates (such as supplier_part).
• Comparison operation evaluation ( "<", "<=", "=", "<>", ">=", ">").
• Variable and token instantiation.
• Domain function evaluation (such as calls to ingres:select).
• Built-in type conversion execution (such as string).

     Suppose a user wishes to find all listed suppliers of "part3". They may query this through Hermes by using the supplier_part predicate and instantiating the Part variable to a constant, "part3" (as shown in Fig. 4-3).

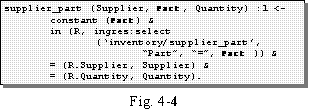

• 4.4.1 -- Following the supplier_part predicate, Hermes resolves this query via the supplier_part rule, noted in Fig. 4-4, from the mediator file.



• 4.4.2 -- Since the "part3" constant (highlighted in Fig. 4-3) matches the Part variable in the clause header (highlighted in Fig. 4-4), Hermes replaces all Part variable instances with the constant value throughout the rest of the rule (see Fig. 4-5 highlights).


• 4.4.3 -- The built-in constant literal (see Fig. 4-5) appears in this rule to ensure instantiation of all domain function inputs; Calling a domain function with variable arguments would cause a system error. "part3" is a constant, however, so the literal succeeds and thus gets eliminated from the rule (see Fig. 4-6).

• 4.4.4 -- Hermes evaluates functions embedded in a literal before processing the literal further. Fig. 4-7 shows that the in literal now contains two functions: the ingres:select domain function and the built-in string type conversion. Hermes evaluates functions from innermost to outermost, so the string function is evaluated first. The string function evaluates its terms, if necessary, and concatenates the results.

•  4.4.5 -- Next Hermes evaluates the ingres:select domain function noted in Fig. 4-8 and writes the solution, the set of all suppliers and available "part3" quantities, in standard Hermes data format to a numbered temporary file located in the system work directory (see Fig. 4-9). Successful domain function execution then prompts Hermes to replace the original ingres:select function call rule entry (see Fig. 4-7) with the newly created solution file name as highlighted in Fig. 4-10.


• 4.4.6 -- Hermes Domain functions, such as ingres:select, typically render a set, or array, of data elements. The search engines then can use the in function to iterate through individual set, or array, elements as necessary, applying further substitutions required to resolve the query rule.

     The first in function execution on the 1.hrm solution file (Fig. 4-9) prompts Hermes to substitute the rules' R variable with the resulting record constant <"supplier5" 29>. Next, Hermes replaces rule variables R.Supplier, and R.Quantity, with data field constants "supplier5", and 29, respectively (see Fig. 4-11), and refines the rule to solve for the first in function iteration as listed in Fig. 4-12. NOTE: Subsequent executions of the in function over the 1.hrm solution file would result in similar data substitutions drawing from remaining record elements <"supplier23" 34> and <"supplier17" 8>.


• 4.4.7 -- Hermes next instantiates the rule's Supplier variable with constant value "supplier5" and updates the query rule to read as listed in Fig. 4-13.


• 4.4.8 -- Final resolution of the Quantity variable to constant 29 leaves the query rule empty (Fig. 4-14) and the proof complete (for this iteration). Hermes now displays the answer using the saved substitutions (Fig. 4-15).

     As the user requests more answers, Hermes would continue the in function iteration / data instantiation process using the 1.hrm solution file and render additional answers such as those listed in Fig. 4-16.

    Now suppose the user wished to determine whether a particular supplier provides "part3". Hermes can answer this query using a slightly different instantiation of the same supplier_part predicate (Fig. 4-17). Execution of the predicate rule for this new query would proceed similar to the previous Fig. as the domain function call would again return a solution file and the in function would iterate through individual records. Since the user supplied the supplier value on query execution, however, Hermes propagated the value down thru the rule prior to processing (see Fig. 4-18). Following the in function iteration, we now find a slightly different situation for processing the equal '=' literal. Where previously the equal literal addressed a variable token and constant value (Fig. 4-12 above), here it applies to two constant values and thus must perform an equality test (Fig. 4-19). Walking through the 1.hrm solution set, this test would fail for the first element <"supplier5" 29>, succeed for the second element <"supplier23" 34>, and fail for the third element <"supplier17" 8>. Thus Hermes would return only one answer (Fig. 4-20), listing also the available part quantity.
